INCLUDES: Photon Exe Plus 10-watt, Wireless Foot Pedal, Spool, A Multi-use Handpiece with 5 Disposable Tips, Bleaching Tip and Pain Therapy Tip, Remote Interlock, Power Supply Charger, 3 Laser Safety Glasses, Initiate Sticker, Safety/Warning Sticker, Carrying Case, Manual.
Photon EXE Plus integrates 980nm precision with a revamped LBR timer and more than 25 presets and multiple customized programs with the modernized interface, large screen, and improved battery performance.

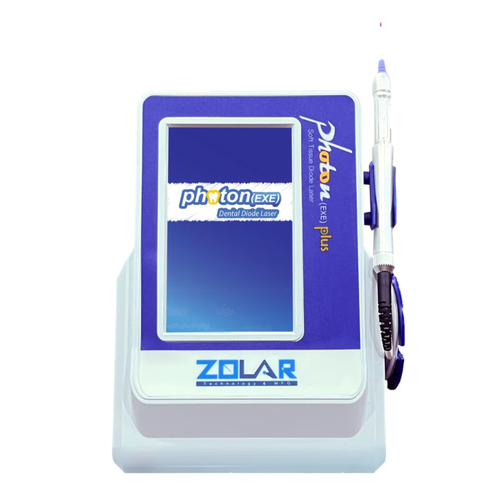

Photon EXE Plus Dental Diode Laser: Advanced Technology for Precise Treatments
The ‘Photon’ Diode Laser is a surgical device at the cutting edge of technology, designed for a wide variety of oral soft tissue procedures. It utilizes a solid-state diode as a laser energy source. The energy is delivered to the operating area by means of a delivery system consisting of a flexible fiber connecting the laser source and the handpiece. The device is activated by means of a footswitch. This high-performance device is classified as Class 4 and operates at a wavelength of 980nm, delivering an output power of 10W. Its strong capabilities render it a versatile tool suitable for a wide array of surgical and teeth-whitening applications.
- Surgery: The 980nm wavelength is well-absorbed by water and hemoglobin, making it highly effective for precise cutting and coagulation in soft tissue surgeries. It allows for reduced bleeding, better visibility, and faster healing.
- Teeth Whitening (Bleaching): it can be used in conjunction with specific bleaching agents to aid in teeth whitening procedures.
Features
- Improved Precision
Improve control for intricate surgeries - Improve Accessibility
High Resolution 5 Inches Large Display - New Interface
User friendly Interface, Shorten the Treatment Time and Faster Healing - Additional Presets
Over 30 preset programs including multiple customized programs with an interactive and modernized user interface - Power and Wavelength
10Watt and 980nm - Preservation of Healthy Tissue
Remove diseased tissue and preserve healthy tissue - Precise and Accurate
Allow for precise tissue targeting, minimizing damage to surrounding areas - Reduced Risk of Infection
The high-energy beam sterilizes the area as it works, reducing the risk of post-operative infections
Technical Information
| Dimension | 187(L) × 148(W) × 138(H) mm |
| Laser Type | Diode 980nm (10W) |
| Safety classes | 4 class of laser I type B class of electrical safety |
| Display | 5 inches Large Display |
| Power Range | 100mw to 10W |
| Operation mode | Continuous or Pulsed |
| Pulse duration | Start from 0.01ms to 9.9s |
| Pulse frequency | Regulated from 1 Hz to 5000Hz |
| Duty Cycle | Adjustable |
| Aiming Beam | 650nm 2mW |
| Audible Notification | Yes |
| Visual Notification | Yes |
| Power Requirements | AC100-240V 50/60Hz |
| Battery | Rechargeable lithium polymer 2.6AH, 16.8V |
| Wireless Foot Pedal | Frequency 2.4 GHz |
| NOHD | 2.0 meters from the distal end of the fiber |
| Warranty | 2 Years |
